13X-HP Molecular Sieve is a new type of X-type molecular sieve, a special molecular sieve for oxygen production.
Shanli 13X-HP molecular sieve has the Characteristics of high nitrogen adsorption capacity, excellent nitrogen and oxygen separation coefficient, higher oxygen production purity, faster adsorption speed, longer service life, etc.
Item No :
SL13X-HPShipping port :
Shanghai,Ningbo,Tianjin etc.Lead time :
3-5 daysAppearance :
Light grayshape :

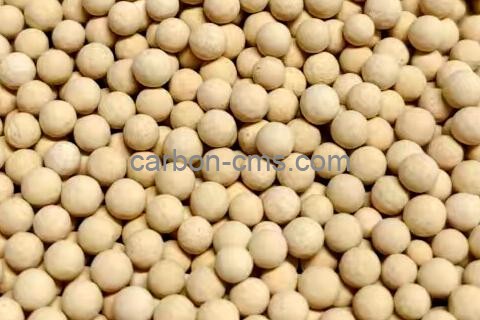

PelletPore Diameter :
10 angstromsDiameter :
0.4-0.8, 1.6-2.5Package :

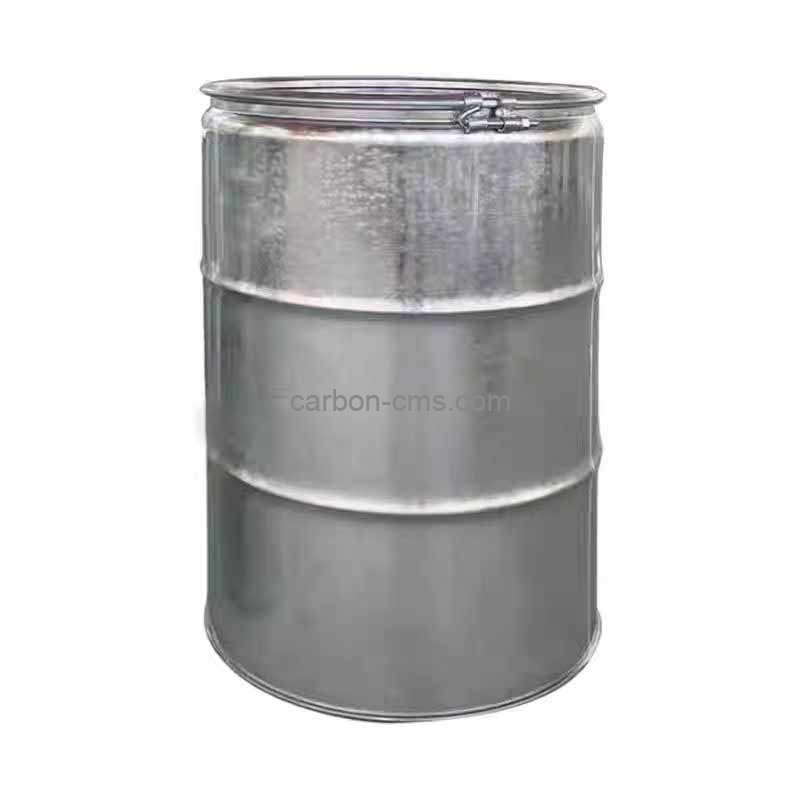

140kg per drum
SL13X-HP High Purity Molecular Sieve For PSA Oxygen Generator
Typical chemical formula: Na2O·Al2O3·2.45SiO2·6.0H2O (SiO2:Al2O3≈2.6-3.0)
Technical specifications
| Item | Parameters | |
| Shape | Pellet | |
| Diameter (mm) | 0.4-0.8 | 1.6-2.5 |
| Bulk Density (g/ml) | ≥0.62 | ≥0.62 |
| Compressive Strength (N/piece） | / | ≥30.0 |
| N2 capacity (m/g) | ≥8.0 | ≥8.0 |
| N2/O2 selectivity (a) | ≥3.0 | ≥3.0 |
| Particle Size Pass Rate (%) | ≥95.0 | ≥97.0 |
| Static Water Adsorption (%)(35±1)℃Saturated Salt Water, RH=75%,24 hours | ≥30.0 | ≥30.0 |
| Static carbon dioxide adsorption (mg/g) | ≥19.8 | ≥19.8 |
| Moisture Content (%) (550±10)℃,1hour | ≤1.0 | ≤1.0 |
| Wear rate (%) | ≤0.2 | ≤0.2 |
SHANLI oxygen molecular sieve
Oxygen molecular sieve is mainly used in PSA oxygen concentrator device,with the characteristics of higher N2 adsorption capacity and N2 with O2 selectivity,easy desorption etc.
Its N2 adsorption capacity is 2-3 times larger than A type oxygen enrichment molecular sieve,while the O2 and N2 selectivity is about twice of A type oxygen enrichment molecular sieve,at the same time,it has good wear resistance and longer service life.
Our Certificates

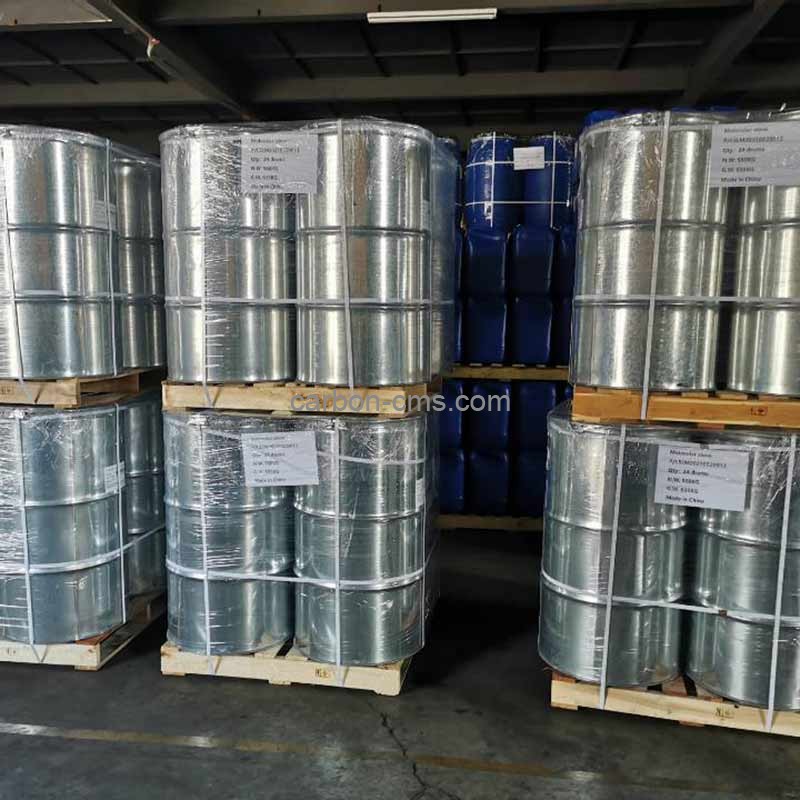

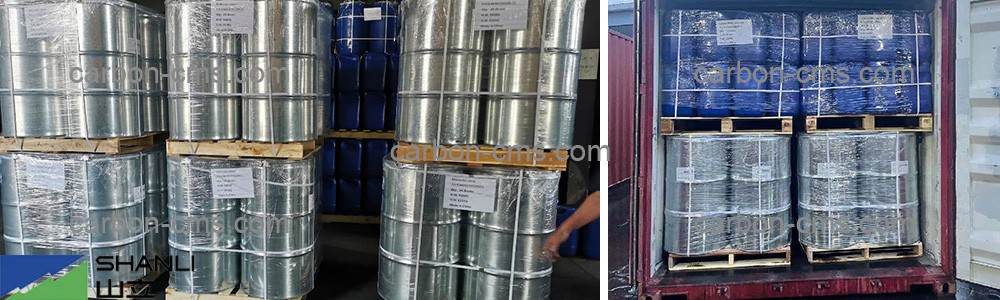

Delivery&Packaging
Main Application
1.Pressure swing adsorption oxygen production process with pressure adsorption and atmospheric pressure desorption.
2.Applied to PSA industrial oxygen production and medical central oxygen supply systems.
FAQ
Are molecular sieves toxic?
- Non-toxic, but dust may irritate airways—wear a mask when handling.
Can molecular sieves be reused?
- Yes, but periodic regeneration is needed. Severe contamination (e.g., oil) may require replacement.
How to test sieve performance?
- Lab methods: BET surface area analysis, adsorption isotherms.
- Field methods: Measure outlet gas dew point or CO₂ concentration (vs. baseline).
